Exterior water proof IP65 SMD Lumileds 3030 200W LED flood lights LED tunnel lighting
The listed price is based on Phi-lips Xitanium driver and Lumileds Luxeon 3030 chips
Features
1. Rated power: 200W
100W 150W 200W 250W 300W optional
2. Extrusion aluminum alloy heat sink with lots of ripples on to increase heat dissipation space, excellent heat dissipation.
3. Adjustable bracket.
4. Beam angle 60/90 degree optional
5. Meanwell, Moso, Inventronics, Phi-lips Xitanium, CB driver optional.
6. Lumileds Luxeon 2D chips, Osram, Bridgelux, CREE 3030 optional
7. THD<10%, PF>0.95, UGR<19, 6/10KV surge protection optional, IP65.
8. Application: sports lighting, stadium lighting, square lighting, airport lighting, high mast lighting, tunnel lighting.,etc
9. 5 years warranty
Photos for Exterior water proof IP65 SMD Lumileds 3030 200W LED flood lights LED tunnel lighting
50W/module, 200W is 4 ismodules, below photos are 200W.
Specification for Exterior water proof IP65 SMD Lumileds 3030 200W LED flood lights LED tunnel lighting
Our production for Exterior water proof IP65 SMD Lumileds 3030 200W LED flood lights LED tunnel lighting

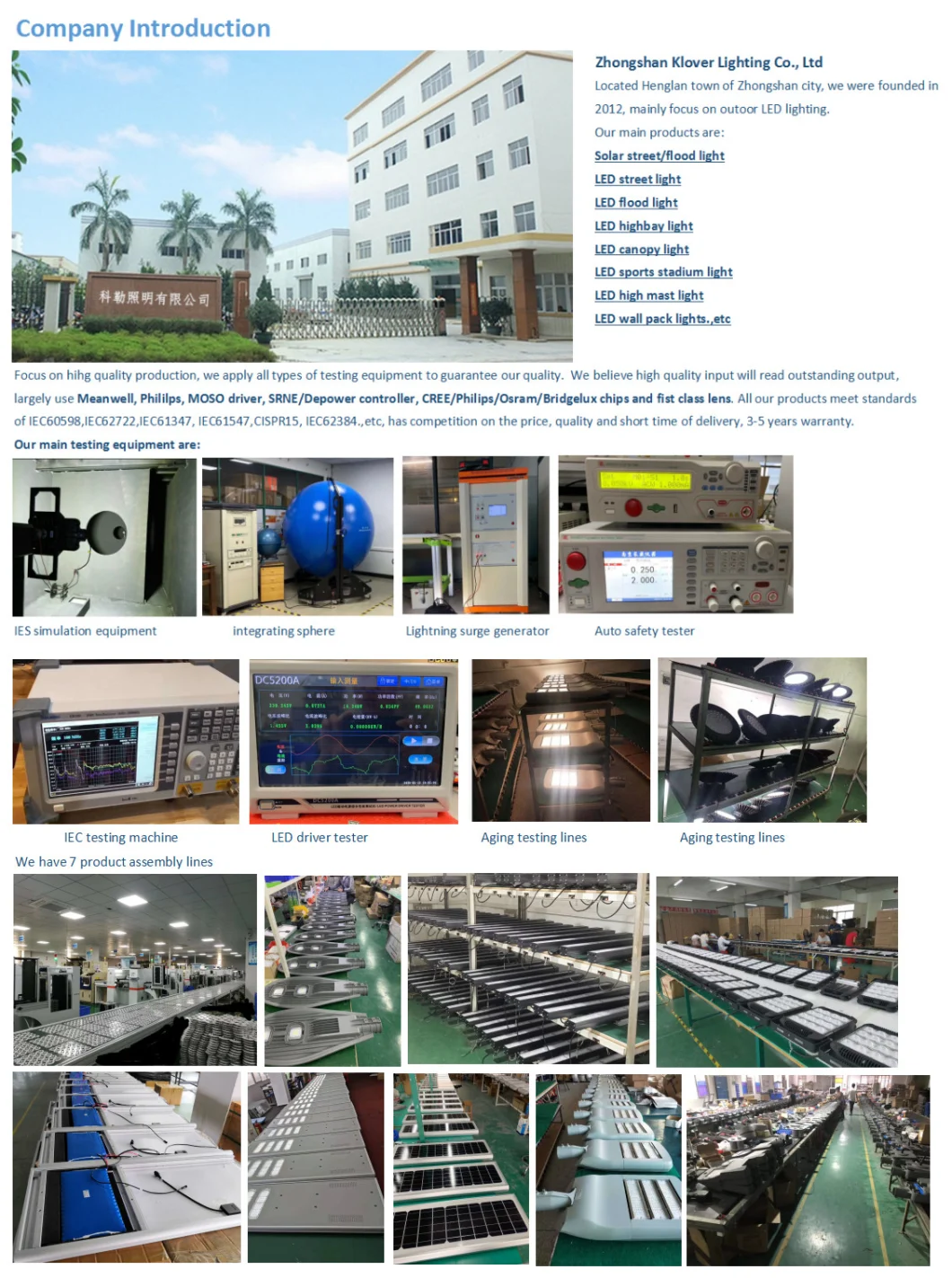

Company profile:
Lighting Exhibition
We are selling to over 20 countries worldwide, always offer the best price for our value added products.
FAQ
Can test as long time as you wish, 1 year to 5 years no problem, we have full confidence on our quality.
Sample available within 7 working days after payment received.
The listed price is based on Phi-lips Xitanium driver and Lumileds Luxeon 3030 chips
Features
1. Rated power: 200W
100W 150W 200W 250W 300W optional
2. Extrusion aluminum alloy heat sink with lots of ripples on to increase heat dissipation space, excellent heat dissipation.
3. Adjustable bracket.
4. Beam angle 60/90 degree optional
5. Meanwell, Moso, Inventronics, Phi-lips Xitanium, CB driver optional.
6. Lumileds Luxeon 2D chips, Osram, Bridgelux, CREE 3030 optional
7. THD<10%, PF>0.95, UGR<19, 6/10KV surge protection optional, IP65.
8. Application: sports lighting, stadium lighting, square lighting, airport lighting, high mast lighting, tunnel lighting.,etc
9. 5 years warranty
Photos for Exterior water proof IP65 SMD Lumileds 3030 200W LED flood lights LED tunnel lighting
50W/module, 200W is 4 ismodules, below photos are 200W.
Specification for Exterior water proof IP65 SMD Lumileds 3030 200W LED flood lights LED tunnel lighting
Product Name | 100W,150W, 200W, 250W, 300W LED flood light | ||||
Model Number | CL-FL0714-100W | CL-FL0714-150W | CL-FL0714-200W | CL-FL0714-250W | CL-FL0714-300W |
Rated Power | 100W | 150W | 200W | 250W | 300W |
LED Driver | Meanwell, Moso, Inventronics, Phi-lips Xitanium, CB driver., etc | ||||
Electric Parameter | AC85-308V, 50/60HZ; PF>0.95, THD<10%, SPD: 10KV | ||||
Beam Angle | 60/90 degree optional | ||||
LED Chips | CREE/Osram/Bridgelux/Lumileds Luxeon 3030 optional | ||||
LED Quantity | 112pcs | 168pcs | 224pcs | 280pcs | 336pcs |
Optical Parameter | CCT: 2700-6500K optional, UGR<19, Ra>80, 120-130lm/w | ||||
IP Rating | IP68 | ||||
Working Temp | -30ºC To 50ºC | ||||
Material | Heavy Extrusion Aluminum alloy | ||||
Lifespan | >50,000 hours | ||||
Warranty | 5 Years |
Our production for Exterior water proof IP65 SMD Lumileds 3030 200W LED flood lights LED tunnel lighting
Company profile:
Lighting Exhibition
We are selling to over 20 countries worldwide, always offer the best price for our value added products.
FAQ
Q1. Can I have a sample order for LED flood light?
A: Yes, we welcome any sample orders, can mix different models to order samples.Can test as long time as you wish, 1 year to 5 years no problem, we have full confidence on our quality.
Sample available within 7 working days after payment received.
