Best price for explosion-proof 5 tons oilfield winch

Product DescriptionJQHS Series air winch is a kind of manual operated single drum type air winch. Air Winch adopts compressed air as air winch\'s power to driven air motor, driving drum via two grades gear (to reduce transmitting speed and enlarge torque) so as to lift and drag heavy cargo. Parameters:NameTop Layer Loa

Featured Products

Product Description

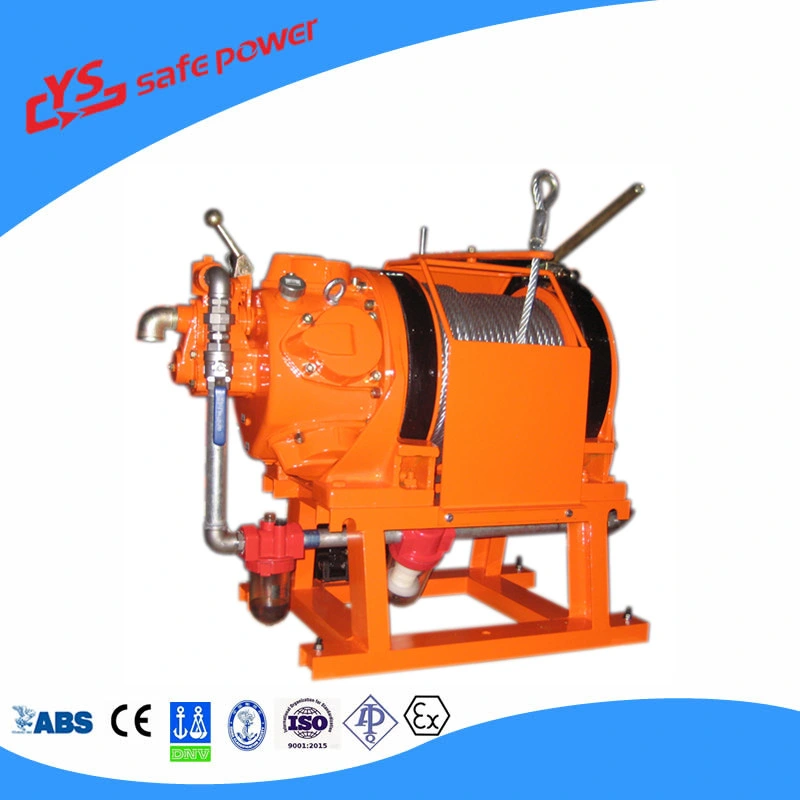

JQHS Series air winch is a kind of manual operated single drum type air winch. Air Winch adopts compressed air as air winch's power to driven air motor, driving drum via two grades gear (to reduce transmitting speed and enlarge torque) so as to lift and drag heavy cargo.
Anti-Explosive Function 5 Ton Oil Field Winch Best Price



Parameters:

NameTop Layer Load (kn)Rope Speed
(m/min)
Drumcap
(m)
Dimension
(mm)
Weight
(kg)
JQHS10104810-100850*394*42035-150
JQHS30304020-2401100*750*1050300-450
JQHS50503530-2601200*800*1050500-660
JQHS1001001530-3501500*1100*10501450-2200

Standard Features:

• Enable to use in the "HAZARDOUS AREA" such as explosive, high-temperature, humid, the place where is unusable of electricity

• Automatic disc-type holding brake

• Manual band-type holding brake

• Designed for reliable day to day operation

• Heavy-duty steel fabricated drum and frame components

• Compact & light weight designed winches achieve better mobility at job site.

• Easy to service,  maintain and repair.
Anti-Explosive Function 5 Ton Oil Field Winch Best Price

Options Available:

• Automatic band brakes

• Grooved, divided and extended length drums

• Air preparation packages: filter, lubricator, strainer, and regulator

• Drum guards

• Remote pendant control

• Muffler

• Special paint options: special colors, zinc rich primer, epoxy top coats



WHY CHOOSE YS

YS Knows Your Application.

With a history spanning 47 years, YS has served a wide variety of industries including marine, mining, manufacturing, material handling, inland terminal, and construction to name a few.  No matter how diverse the applications, one thing connects them all - YS moves it all from big to small. YS products are manufactured to the highest industrial and quality standards because your application is our application.
Anti-Explosive Function 5 Ton Oil Field Winch Best Price



YS Specializes In Customization

YS specializes in custom products, so if you don't see what you need or have a unique application we can help design a product to suit your application. We also understand that some jobs require a tool that isn't available right off the shelf. That's why YS employs an experienced engineering and technical sales staff that can consult, design and make modifications as necessary to provide the best possible product for your application. With a highly qualified and creative design team ready to listen, we are confident that YS can work with you to develop a product that fits your unique needs.

YS Is Synonymous With Quality

Superior quality is designed into everything we manufacture. Every product YS manufacture must meet our strict quality standards or it doesn't carry the YS name. Our quality management system is certified to ISO and API standards. All inspection tools are maintained and calibrated regularly as required under the ISO standard. All new products are rigorously tested to ensure performance and durability.

At YS, we do not believe that our work is done when a sale is complete. Instead, we view it as a beginning. YS strive to cultivate long-term relationships with our customers. You will find us to be infinitely accessible for customer support and ready to meet your on-going winching needs as your company continues to grow.

Packaging & Shipping
Anti-Explosive Function 5 Ton Oil Field Winch Best Price
Anti-Explosive Function 5 Ton Oil Field Winch Best Price
Anti-Explosive Function 5 Ton Oil Field Winch Best Price

QUESTIONS WE ASK TO FIND THE WINCH FOR YOU:

  • Is it lifting or pulling?
  • What weight is it lifting or pulling?
  • If pulling, what are the ground/surface conditions?
  • What rope length and diameter are required?
  • What line speed is required?
  • What power source is required/is available?
  • Does the winch need a freewheeling clutch?
  • What type of controls are required?
  • Is multi-reeving involved?
